Electric Motors Guide: A Comprehensive Resource for Industrial Applications

Electric motors are integral to industrial operations, powering equipment, machines, and processes that drive productivity. As an industrial distributor, Magnum Industrial understands the importance of selecting the right motor for each application.

This comprehensive guide covers everything you need to know about electric motors, from types and components to maintenance tips and energy efficiency considerations.

What Are Electric Motors?

An electric motor is a device that converts electrical energy into mechanical energy. This conversion happens through the interaction of magnetic fields and electric currents within the motor’s components. Electric motors are used across various industries, including manufacturing, agriculture, and HVAC systems.

Key benefits of electric motors include:

  • High efficiency and reliability
  • Low operating costs
  • Scalability for diverse applications
  • Availability of environmentally-friendly options

Understanding Electric Motors: The Basics

Electric motors convert electrical energy into mechanical energy through electromagnetic interaction. While this basic principle remains constant, modern motors come in numerous configurations optimized for different applications. Understanding these differences is crucial for selecting the right motor for your needs.

How Electric Motors Work

At their core, electric motors operate through the interaction between magnetic fields and electrical currents. When electricity flows through wire coils within the motor, it creates magnetic fields that interact with permanent magnets or electromagnets, producing rotational force (torque). This interaction drives the motor’s shaft, which can then power various types of equipment.

diagram of components of electric motor

Components of an Electric Motor

Electric motors consist of several key components, and it is important to understand their building blocks before you start making decisions about the type of motor that will best suit your needs.

Here are the basic components of an electric motor:

  • Rotor and Stator: The rotor rotates while the stator remains stationary to create a magnetic field. These two components are the “heart” of the motor that creates mechanical motion.
  • Bearing Systems: Bearings are precision components that support the rotor and allow it to spin freely while maintaining proper alignment. Think of bearings as the unsung heroes of motor operation—when they work well, you never notice them, but any bearing issues quickly affect motor performance. Modern motors typically use two types of bearings: ball bearings and roller bearings.
  • Winding Systems: Motor windings are carefully designed conductor arrangements that create the magnetic fields necessary for motor operation. Different winding patterns serve specific purposes. For example, stator windings create the primary magnetic field, determine motor speed and torque, and affect motor efficiency. Rotor windings interact with stator magnetic fields, allow for speed control in certain designs, and affect the motor’s starting and running characteristics.
  • Commutation Systems: In DC motors, the commutator serves as a mechanical rotary switch that reverses the current direction in the rotor windings. This crucial component consists of the commutator assembly and the brush system.
  • Frame & Housing: The construction of the motor frame provides more than just protection—it’s an integral part of the motor’s operation. A few of the key functions of the motor frame include maintaining precise alignment of the interior components, helping with motor ventilation and cooling, and protecting against wear from external environmental factors.

Types of Electric Motors

Understanding the different types of electric motors is critical to selecting the right one for your application. Here are the primary categories:

1. AC Motors

AC (Alternating Current) motors are the most common type used in industrial applications. They are further divided into:

  • Induction Motors: These are reliable and efficient motors commonly used in pumps, fans, and conveyors. Induction motors are the most common type of motor used in industrial applications due to their simple, robust construction and low maintenance requirements. Additionally, induction motors are ideal for constant-speed applications. Induction motors are available in single-phase and three-phase configurations.
  • Synchronous Motors: Used for precision tasks, synchronous motors maintain a constant speed under varying loads. Synchronous motors are more efficient than induction motors due to their excellent power factor correction, minimizing wasted energy. They can also be run at very precise speeds.

2. DC Motors

DC (Direct Current) motors are known for their high starting torque and precise speed control. Types include:

  • Brushless DC Motors: Brushless DC motors are long-lasting, low-maintenance, and tend to have a longer lifespan than their brushed counterparts. They are also more energy efficient than brushed DC motors, but they do have a higher upfront cost. These motors offer good speed control.
  • Brushed DC Motors: Brushed DC motors are economical but require more maintenance due to brush wear than their brushless counterparts. These motors are suitable for small machinery, robotics, and electronics. Their simple design and controls make them good for variable-speed applications. These motors are also cost-effective.

3. Specialty Motors

  • Servo Motors: Servo motors are sophisticated devices designed for precise control of angular position. They are essential in CNC machines and robotics. These highly responsive motors offer built-in feedback systems that constantly monitor and adjust their performance. Servo motors have a high torque-to-inertia ratio and offer smooth motion at all speeds—even very low ones.
  • Stepper Motors: Stepper motors operate in an open-loop system and rotate in precise increments called steps. These motors have excellent low-speed torque, simple control systems, and low maintenance requirements. They are best for applications requiring discrete positioning, such as 3D printing.

Applications of Electric Motors

Electric motors are used in a wide variety of industrial applications, including:

  • Conveyor Belts: Conveyor belts transport materials from one location to another. Electric motors power the belts, which move the materials along the belt.
  • Pumps: Pumps move fluids from one location to another. Electric motors power the pumps, which create the pressure needed to move the fluids.
  • Fans: Fans are used to circulate air. Electric motors are used to power the fans, which move the air around.
  • Compressors: Compressors are used to compress air or other gases. Electric motors are used to power the compressors, which create the high pressure that is needed to compress the gases.
  • Machine Tools: Machine tools are used to cut, shape, and form materials. Electric motors are used to power the machine tools, which move the tools and materials around.
  • Automotive Applications: Electric motors are becoming increasingly popular in the automotive industry. They are used to power electric vehicles, as well as to power hybrid and plug-in hybrid vehicles.

electric induction motor for industrial applications

Benefits of Electric Motors

There are many benefits to using electric motors in industrial applications. Some of the benefits include:

  • Efficiency: Electric motors are very efficient, which means that they can convert a large amount of electrical energy into mechanical energy. This can help to reduce energy costs.
  • Reliability: Electric motors are very reliable and can be used in harsh environments.
  • Low Maintenance: Electric motors require very little maintenance.
  • Quiet Operation: Electric motors are very quiet, making them ideal for applications where noise is a concern.
  • Environmental Friendliness: Electric motors do not produce emissions, which makes them more environmentally friendly than traditional gasoline engines.

How to Choose the Right Electric Motor

Selecting the right motor involves evaluating several factors. Here are a few key considerations you’ll want to address before purchasing a motor.

1. Application Requirements

Operational success is dependent upon understanding the basic needs of a motor and choosing the one that most closely matches your application for the motor. Here are a few things to consider:

  • Load Type: Is the load constant or variable?
  • Speed and Torque: Consider both starting and running requirements.
  • Duty Cycle: Determine if the motor will run continuously or intermittently.

2. Environmental Considerations

External factors can also have a big impact on motor performance. Here are two major external factors that can make a big impact. Consider these when choosing your next motor:

  • Temperature: Ensure the motor can operate within the ambient temperature range.
  • Ingress Protection (IP) Rating: Indicates resistance to dust and water.

3. Energy Efficiency

Look for motors with a high-efficiency rating, such as those that comply with the NEMA Premium® standard. Energy-efficient motors reduce operating costs and extend motor life, making a big impact on your bottom line.

4. Budget and Maintenance

Weigh initial costs against long-term maintenance and operating expenses. The total cost of ownership considers:

  • Initial purchase price
  • Installation costs
  • Energy costs over expected life
  • Maintenance costs
  • Reliability factors
  • Replacement parts availability
  • Downtime costs

At Magnum Industrial, our technical team can help you evaluate these factors for your specific application. We understand that proper motor selection involves balancing multiple requirements, and we’re here to guide you through the process. Contact us to discuss your motor selection needs, and let us help you find the optimal solution for your application.

Electric Motor Installation & Maintenance Tips

Proper installation and maintenance are critical to maximizing the lifespan and performance of your electric motor.

Electric Motor Installation Tips

Get started on the right foot with the following electrical motor installation tips:

  • Ensure alignment between the motor and the driven equipment.
  • Use appropriate mounting hardware and vibration-damping systems.
  • Verify electrical connections and grounding.

Electric Motor Maintenance Best Practices

Maintenance is critical in preventing preventable issues with your electric motor. Here are a few best practices to follow:

  • Regularly inspect bearings, windings, and other critical components.
  • Lubricate moving parts according to the manufacturer’s recommendations.
  • Monitor performance metrics, such as vibration and temperature.
  • Implement a preventive maintenance schedule.

Electric Motor Energy Efficiency and Sustainability

Energy-efficient motors can significantly reduce operational costs and environmental impact. Consider the following:

  • Variable Frequency Drives (VFDs): Optimize energy usage by controlling motor speed.
  • High-Efficiency Motors: Replace outdated motors with newer models meeting IE3 or IE4 standards.
  • Energy Audits: Identify inefficiencies in your motor systems and address them.

Troubleshooting Common Electric Motor Issues

Even well-maintained motors can encounter problems. Here are some common issues and their solutions:

1. Overheating

  • Cause: Overloading, poor ventilation, or electrical faults.
  • Solution: Reduce load, improve ventilation, or repair faulty wiring.

2. Vibration

  • Cause: Misalignment, unbalanced components, or worn bearings.
  • Solution: Realign the motor, balance the rotor, or replace bearings.

3. Noise

  • Cause: Loose parts, electrical faults, or mechanical wear.
  • Solution: Tighten loose parts, inspect electrical connections, or replace worn components.

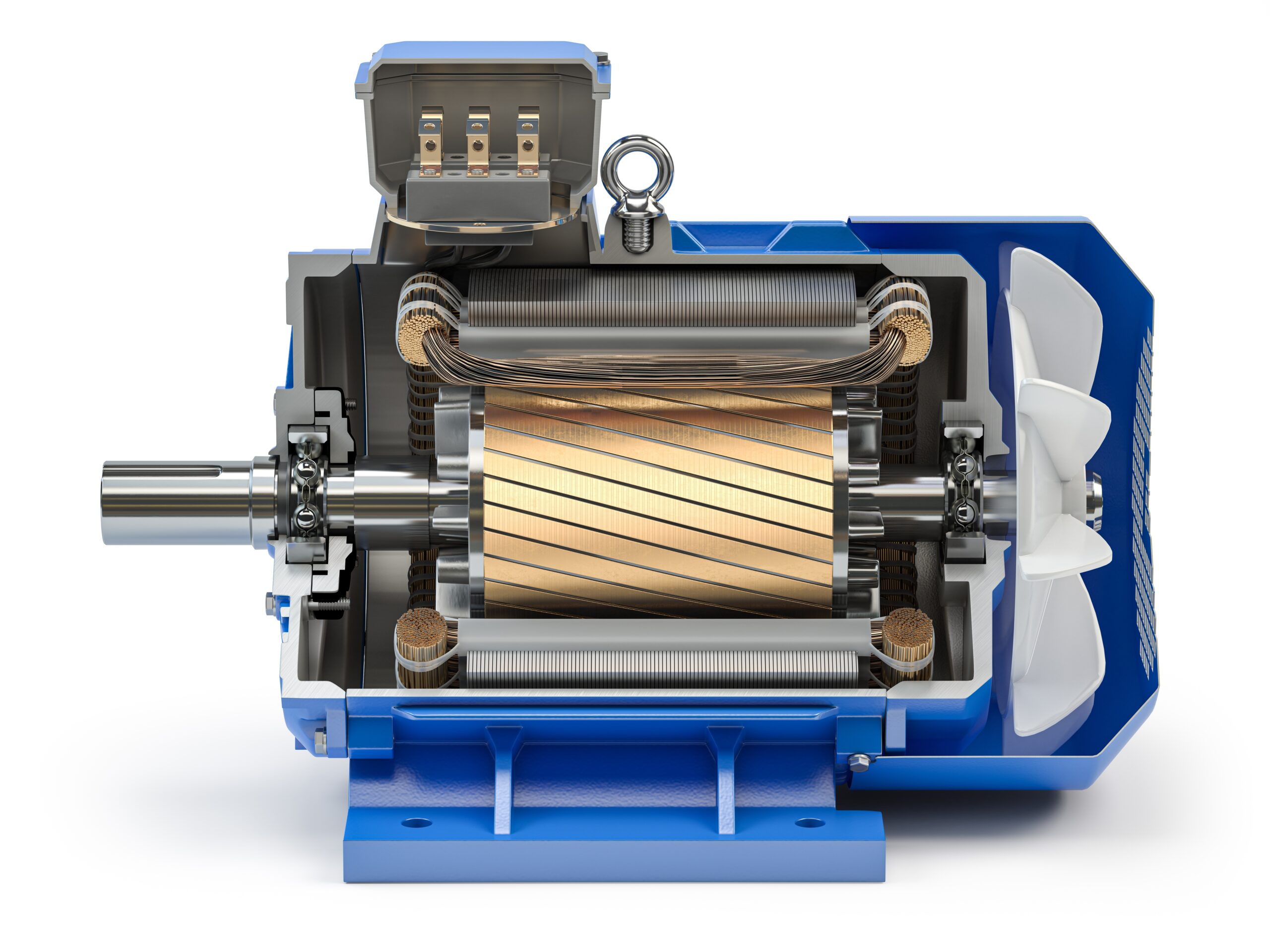

interior view of industrial electric motor

Industry Applications for Electric Motors

At Magnum Industrial, we understand that electric motors serve as the backbone of modern industry. Let’s explore how these essential components power various sectors, examining specific applications and requirements for each industry.

1. Manufacturing

Manufacturing represents one of the most diverse and demanding environments for electric motor applications. Modern manufacturing facilities rely on motors for nearly every aspect of production.

Electric motors are used in manufacturing for assembly line operations, processing equipment, and quality control systems, as well as conveyors, mixers, and automated systems. Let’s take a deeper look.

  • Assembly Line Operations: Assembly lines depend on precisely controlled motors for conveyor systems, pick-and-place robots, automated packaging equipment, and material handling systems.
  • Processing Equipment: Processing operations utilize motors in various ways, such as mixing and blending equipment, cutting and forming machines, grinding and polishing systems, and coating and finishing equipment.
  • Quality Control Systems: Modern quality control relies on motor-driven systems for automated inspection equipment, testing apparatus, sorting systems, and packaging verification equipment.

Learn more about about how we can help with your manufacturing needs today.

2. Construction

Electric motors power equipment such as cranes, hoists, and concrete mixers. They are essential for tasks requiring precision, reliability, and efficiency in demanding construction environments.

In addition to these applications, electric motors are used in:

  • Drilling Equipment: Ensuring consistent performance and reliability for drilling operations.
  • Earthmoving Machines: Providing power for excavators, bulldozers, and loaders.
  • Scaffolding Systems: Assisting in lifting and aligning structural components.

Modern electric motors designed for the construction industry are built to endure heavy loads, frequent starts and stops, and challenging weather conditions.

3. Agriculture

Agriculture presents unique challenges for electric motors, including exposure to harsh environments and varying load conditions.

  • Irrigation Systems: Modern irrigation depends on motors for well pumps, booster pumps, center pivot systems, and drip irrigation.
  • Material Handling: Farm operations utilize motors for feed conveyors, grain augers, sorting equipment, and storage system operations.
  • Processing Equipment: Agricultural processing requires motors for grain drying systems, cleaning equipment, milling operations, and packaging systems.

Please contact Magnum Industrial to learn more about how we can help with your farming needs.

4. Food & Beverage

In this industry, motors are used to operate conveyors, mixers, and refrigeration systems. Hygienic designs and energy-efficient solutions are particularly important in maintaining product safety and reducing operational costs.

Additional applications include:

  • Bottling and Packaging Lines: Ensuring precise speed control for filling and capping machines.
  • Processing Equipment: Powering grinders, slicers, and other machinery for food preparation.
  • Temperature Control Systems: Operating chillers and freezers to maintain optimal storage conditions.

Motors used in the food and beverage sector often feature stainless steel enclosures, easy-to-clean designs, and resistance to moisture and chemical exposure.

5. Mining

The mining sector relies on electric motors for heavy-duty applications such as conveyor belts, crushers, and ventilation systems. These motors must withstand harsh conditions, including extreme temperatures, dust, and vibration.

Key applications include:

  • Underground Drilling Machines: Delivering power for deep excavation projects.
  • Ore Processing: Driving crushers, mills, and separators for material refinement.
  • Ventilation Systems: Ensuring proper airflow in mines to maintain worker safety.

Motors in mining applications are designed for durability, high torque, and efficient operation in severe environments. They are often equipped with advanced sealing and cooling mechanisms to ensure reliability.

Why Choose Magnum Industrial for Electric Motors?

Magnum Industrial is your trusted partner for high-quality electric motors and accessories. Here’s why:

  • Wide Selection: We offer AC, DC, and specialty motors to meet diverse needs.
  • Expert Support: Our team provides guidance on selecting and maintaining motors.
  • Competitive Pricing: Get premium motors at industry-leading prices.
  • Fast Delivery: Ensure minimal downtime with our efficient logistics network.

Electric motors are the backbone of industrial operations, driving efficiency and productivity. By understanding their types, components, and maintenance requirements, you can make informed decisions that benefit your business.

For reliable electric motor solutions, contact Magnum Industrial today.
