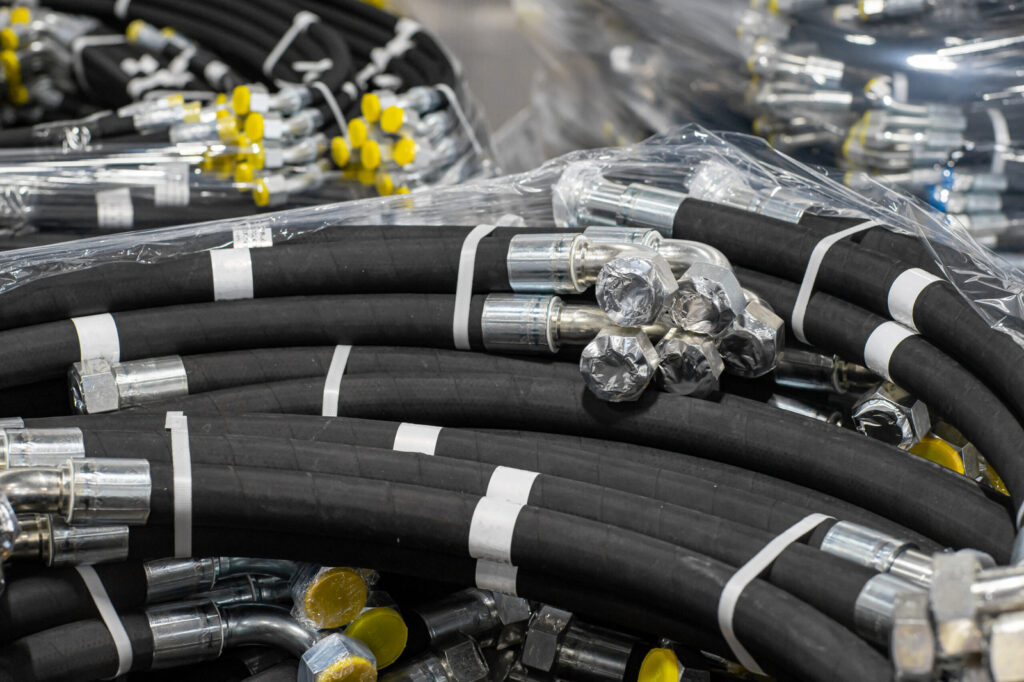

In industrial equipment and machinery, hydraulic systems are the unsung heroes that power everything from construction equipment to manufacturing plants. At the heart of these systems are hydraulic hoses—the critical components that transfer fluid power throughout the machinery.
Selecting the right hydraulic hose isn’t just about finding something that fits; it’s about ensuring your entire operation’s safety, efficiency, and longevity.
Understanding the Basics of Hydraulic Hoses
Hydraulic hoses are specialized, flexible pipes designed to convey fluid under pressure between components in hydraulic systems. Unlike rigid piping, these hoses accommodate movement, vibration, and space constraints while maintaining system integrity.
A typical hydraulic hose consists of three main parts:
- Inner Tube: This is the innermost layer that comes in contact with the hydraulic fluid.
- Reinforcement Layer: This surrounds the inner tube and provides the strength needed to withstand pressure.
- Outer Cover: This serves as a protective exterior that shields against environmental factors.
Each component plays a vital role in the hose’s performance and lifespan. When these elements fail to match your application requirements, the consequences can range from inefficiency to failure, where repair or replacement may become necessary.
Types of Hydraulic Hoses
Understanding the different types of hydraulic hoses available is essential for making the right selection for your specific needs.
Braided Hose
This high-pressure hose, designed to power general industrial applications, comes in configurations of one, two, or three braided steel wires. It’s generally used with petroleum or water-based fluids and operates in temperatures ranging from -40°C to 100°C. The braided construction provides excellent flexibility while maintaining pressure capacity, making these hoses versatile for many common industrial applications.
Multi-Spiral Hose
This type of hose is very flexible, and its internal configuration makes it particularly useful in heavy construction and high-pulse applications. It is normally used to transfer mineral and hydraulic oils or emulsions of water and oil, which makes it particularly useful for construction and civil engineering, mining and quarrying, oil industries, and agriculture, among other uses. The spiral reinforcement layers provide exceptional strength while allowing the hose to flex and move with equipment.
Low-Pressure Hose
This kind of hose is textile-braided, making it very flexible but unsuitable for higher pressures. It’s commonly used in lighter applications such as anti-static delivery, air, lube, or return lines.
The textile reinforcement offers excellent flexibility and cost-effectiveness when high-pressure ratings aren’t required. These hoses are often found in system return lines with minimal pressure requirements.
Stainless Steel Wire-Braided Hose
These heavy-duty hoses, braided by single or double stainless steel wire, are used in aggressive applications such as transferring chemical substances. They are very durable and can withstand extreme temperature and pressure conditions. The stainless steel construction provides excellent chemical resistance and longevity in harsh environments where standard hoses might quickly deteriorate.
Thermoplastic Hydraulic Hose
These are made of two layers of thermoplastic material separated by a middle reinforcement layer made of wire or synthetic fibers. Their capability of operating at very low temperatures and particular resistance to abrasion make them popular in hydraulic-powered lift equipment and lubrication lines where a small outside diameter is needed. Their lightweight and excellent flexibility also make them ideal for mobile equipment applications.
5 Critical Factors in Choosing the Right Hydraulic Hose
Knowing how to choose the right hydraulic hose for your application will ensure efficiency, safety, and more. Consider the following factors during hydraulic hose selection.
1. Pressure Requirements
Perhaps the most crucial factor in selecting the right hydraulic hose is pressure compatibility. Hydraulic systems operate under various pressure levels, and hoses are rated accordingly. These include:
- Working Pressure: The maximum pressure the hose can handle during normal operation.
- Burst Pressure: The pressure at which the hose will fail.
- Surge Pressure: This refers to temporary pressure spikes that occur during operation.
Always select a hose with a working pressure rating that exceeds your system’s maximum operating pressure. Remember that temperature, bending, and aging can reduce a hose’s pressure capacity over time.
2. Size Considerations
When it comes to hydraulic hose sizing, two key measurements come into play. The inside diameter determines flow capacity and must match your system’s flow requirements. Meanwhile, the outside diameter is important for installation clearances and compatibility with fittings.
Undersized hoses can restrict flow, causing excessive heat generation, increased energy consumption, reduced system efficiency, and potential premature component failure. On the flip side, oversized hoses waste space and resources while potentially creating flow issues of their own.
3. Temperature Range
Hydraulic systems often operate in challenging temperature environments. Standard hydraulic hoses typically function between -40°C and 100°C, but specialized applications may require something different. High-temperature hoses are designed for engine compartments or furnace proximity, while low-temperature hoses work well for cold-climate operations, refrigeration systems, or outdoor equipment in winter conditions.
It’s worth noting that the temperature rating applies to both the fluid temperature and the ambient environment. Even if your fluid temperature is within range, excessive ambient temperatures can degrade hoses prematurely.
4. Fluid Compatibility
Not all hydraulic fluids are created equal, and neither are the hoses that contain them. To prevent issues, the inner tube material must be compatible with your specific hydraulic fluid. When incompatibility exists, it can lead to chemical breakdown of the hose material, contamination of the hydraulic fluid, reduced hose lifespan, and potential system failure.
Common hydraulic fluids include petroleum-based, water-based, and synthetic-based. Each requires specific hose compatibility. Always verify that your chosen hose is rated for your particular hydraulic fluid.
5. Environmental Factors
The external environment plays a significant role in hose selection. Many factors can degrade hydraulic hoses or affect hose integrity, including:
- UV exposure–especially in the Arizona sun
- Abrasion from grinding materials or friction points
- Chemical exposure from cleaning agents, lubricants, or process chemicals
- Ozone exposure
The right hydraulic hose does more than just connect components—it’s a critical link in your system’s performance, safety, and longevity. Making an informed hydraulic hose selection requires consideration of multiple factors.
Remember that each application has unique demands, and what works perfectly in one situation may be completely inadequate in another. Taking the time to assess your specific needs or consulting with hydraulic hose experts can mean the difference between a system that performs reliably for years and one that experiences frequent, costly failures.
