Power transmission systems rely on many components working together to transfer motion efficiently and keep equipment operating reliably. While larger components like motors, gearboxes, bearings, and drives often receive the most attention, smaller components play an equally important role in overall system performance.
One of those components is the industrial coupling.
Couplings connect rotating shafts and transfer torque between equipment components, but not all couplings function the same way. One of the most important distinctions in coupling selection is whether the application requires a rigid or flexible coupling.
In industrial environments, factors such as vibration, thermal expansion, shaft movement, and minor misalignment can place stress on connected equipment over time. Choosing the proper coupling helps reduce unnecessary wear, improve reliability, and support smoother system operation.
In Part 7 of our Understanding Power Transmission series, we’ll explain the differences between rigid and flexible couplings, explore common coupling types, and discuss what to consider when selecting the right option for your application.
Why Coupling Flexibility Matters in Power Transmission
In power transmission systems, couplings connect two rotating shafts so torque and rotational motion can transfer from the driving equipment to the driven equipment.
These systems are commonly found in:
- Conveyor systems
- Pumps
- Compressors
- Industrial motors
- Gearboxes
- Manufacturing equipment
- Aggregate and mining applications
While couplings may appear simple, they help support overall equipment reliability by managing movement and reducing stress within the system.
During normal operation, industrial equipment often experiences:
- Vibration
- Shock loads
- Thermal expansion
- Minor shaft movement
- Slight shaft misalignment
Without the proper coupling, these conditions can place excessive stress on bearings, motors, seals, and shafts. Over time, this may increase wear, create vibration problems, or contribute to premature equipment failure.
This is why selecting the proper coupling type is important for long-term power transmission performance.

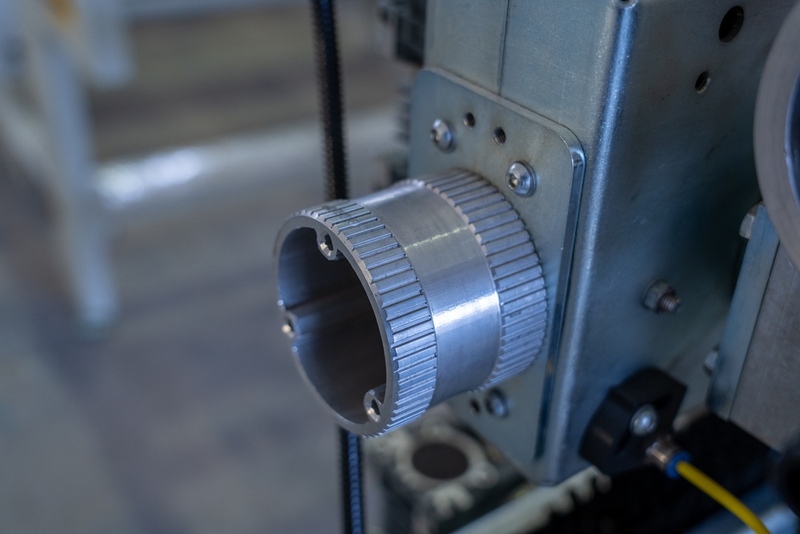

What Are Rigid Couplings?
Rigid couplings create a solid connection between two shafts with little or no flexibility.
These couplings are designed for applications where shafts remain precisely aligned during operation. Because rigid couplings do not accommodate significant movement or misalignment, they are typically used in systems where precision and stability are critical.
Rigid couplings are often selected for applications that require:
- Accurate shaft alignment
- High torsional stiffness
- Minimal shaft movement
- Precise power transmission
Because there is very little flexibility in the connection, any shaft misalignment can transfer stress directly into surrounding components.
For this reason, rigid couplings are best suited for carefully aligned systems where vibration and shaft movement are limited.
What Are Flexible Couplings?
Flexible couplings are designed to accommodate slight movement between connected shafts while continuing to transfer torque efficiently.
In many industrial systems, small alignment changes naturally occur due to heat, vibration, load changes, or normal equipment movement. Flexible couplings help absorb some of this movement before it impacts connected components.
Flexible couplings are commonly used to help compensate for:

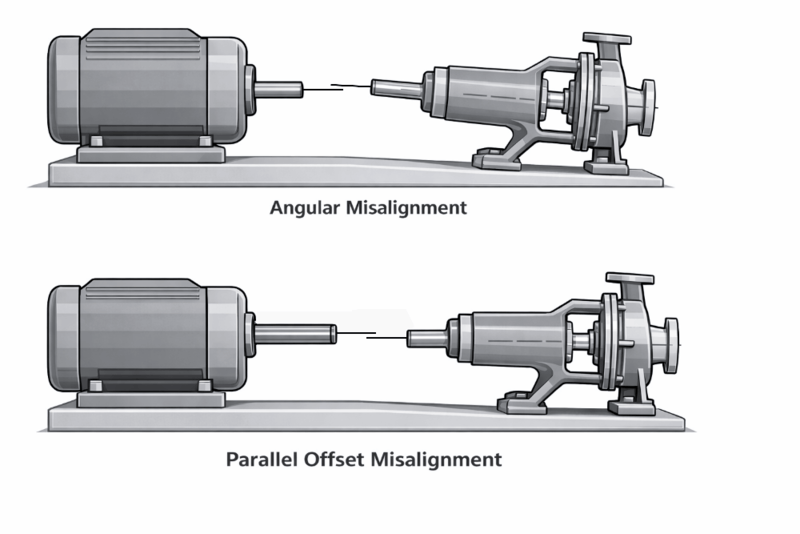

- Angular misalignment
- Parallel misalignment
- Axial movement
- Vibration
- Shock loads
- Thermal expansion
Because of their ability to reduce stress within the system, flexible couplings are widely used throughout industrial power transmission applications.
In many cases, flexible couplings can help:
- Reduce vibration
- Protect bearings and shafts
- Improve equipment lifespan
- Reduce maintenance requirements
- Improve overall system reliability
Common Types of Flexible Couplings
Several different types of flexible couplings are used in industrial applications. Each is designed to handle different operating conditions, torque requirements, and alignment conditions.

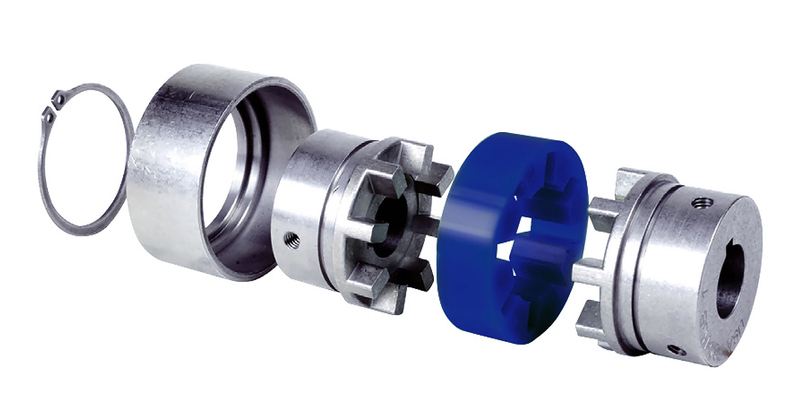

Jaw Couplings
Jaw couplings use an elastomer insert positioned between two metal hubs. The insert helps absorb vibration and shock loads while accommodating slight misalignment.
These couplings are commonly used because they are:
- Cost-effective
- Easy to maintain
- Reliable in many industrial environments
Jaw couplings are frequently found in pumps, motors, fans, and conveyor systems.
Gear Couplings
Gear couplings use interlocking gear teeth to transfer torque between shafts.
Because of their strength and durability, gear couplings are commonly used in heavy-duty, high-torque applications. They can also accommodate a certain amount of shaft misalignment while maintaining reliable torque transmission.
These couplings are often used in demanding industrial systems and larger equipment applications.
Chain Couplings
Chain couplings use sprockets connected by a roller chain to transmit torque between shafts.
They are considered a type of flexible coupling because the chain design allows for limited misalignment and helps absorb some vibration during operation.
Chain couplings are commonly used in heavy-duty industrial environments because they are durable, relatively simple to install, and capable of handling high torque loads.
Grid Couplings
Grid couplings use a flexible metal grid positioned between grooved hubs.
The grid helps absorb shock loads and reduce vibration, making these couplings useful in applications that experience fluctuating loads or sudden torque changes.
Grid couplings are often selected for equipment that requires both durability and vibration reduction.
Rigid vs. Flexible Couplings: Which Is Better?
Neither rigid nor flexible couplings are universally better. The best option depends on the operating conditions of the application.
Rigid couplings are often preferred when:
- Shaft alignment is highly precise
- Minimal movement occurs during operation
- Torsional stiffness is important
Flexible couplings are often preferred when:
- Vibration is present
- Minor misalignment may occur
- Thermal expansion affects shaft positioning
- Equipment experiences shock loading
- Protecting bearings and connected equipment is important
Because many industrial systems experience some level of vibration or movement, flexible couplings are commonly used across a wide range of power transmission applications.
How to Choose the Right Coupling
Selecting the proper coupling helps improve reliability, reduce wear, and support long-term equipment performance.
Several factors should be considered during coupling selection.
Torque and Load Requirements
Applications with higher torque demands require couplings capable of handling increased stress and load conditions. Proper sizing helps reduce premature wear and coupling failure.
Shaft Alignment Conditions
Some applications experience more shaft movement or alignment variation than others. Flexible couplings may help accommodate these conditions more effectively.
Operating Environment
Environmental conditions can influence both coupling performance and material selection.
Factors that may affect coupling selection include:
- Heat
- Moisture
- Dust
- Chemicals
- Vibration
- Outdoor exposure
Maintenance Requirements
Some coupling types are easier to inspect, lubricate, or replace than others. In applications where minimizing downtime is important, maintenance accessibility may be an important consideration.
Supporting Reliable Power Transmission
Couplings play an important role in industrial power transmission systems by helping transfer torque efficiently while supporting equipment reliability.
Understanding the differences between rigid and flexible couplings can help improve equipment performance, reduce unnecessary wear, and support smoother operation across a wide range of industrial applications.
Like bearings, belts, chains, and bushings, selecting the proper coupling for the application is important for maintaining long-term uptime and reliability.
