Understanding How Power Transmission Components Work Together

A power transmission system doesn’t rely on a single component to move power from one place to another. Gears, belts, chains, couplings, gear reducers, bushings, and bearings each perform different jobs, but they have to work together for the system to operate properly.

Throughout this series, we’ve looked at these components individually to understand what they do and how they’re used. Now, it’s time to put those pieces together and look at how a power transmission system works as a whole.

Some components transfer power, some change its speed or torque, and others connect or support the rotating parts along the way. Understanding those relationships makes it easier to see why selecting the right components as a system matters just as much as choosing each component individually.

Quick Jump: Understanding Power Transmission Components

Want to learn more about a specific component? Explore each part of the power transmission system below:

How Does Power Move Through a Power Transmission System?

Think of a power transmission system like a relay race. The motor gets things moving, and each component helps carry that power to the finish line.

A typical system might follow a path such as:

Power source → coupling → gear reducer → shaft → bearing-supported components → belt, chain, or gear drive → driven equipment

Not every system uses every product, and the arrangement varies by application. A conveyor, for example, may use a motor, coupling, reducer, bearings, shafts, and a chain or belt drive, while another machine may rely primarily on gears.

The important point is that each component must be compatible with what comes before and after it. Load, speed, torque, alignment, shaft dimensions, and operating environment can all affect how those components work together.

What Role Does Each Power Transmission Component Play?

Here’s a quick look at how the major components covered throughout this series fit into the larger system:

Component	Primary Function	Role in the System
Gears	Transfer and modify power	Change speed, torque, or direction
Belts & Pulleys	Transfer power between shafts	Move power while allowing some flexibility
Chains & Sprockets	Transfer power through positive engagement	Carry torque between shafts
Bushings	Secure components to shafts	Connect gears, sprockets, and pulleys to shafts
Couplings	Connect rotating shafts	Transfer torque between shafts
Gear Reducers	Change speed and torque	Match power output to the driven equipment
Bearings	Support rotating components	Help shafts operate smoothly under load

The components don’t simply sit next to one another. Their jobs depend on one another.

For example, a bushing creates a secure connection between a shaft and a mounted component, such as a sprocket or pulley. Industrial bearings, meanwhile, support rotating shafts and help manage the loads created as the system operates. Without appropriate support, other components can experience unnecessary stress, friction, or misalignment.

How Do Belts, Chains, and Gears Work Together?

Belts, chains, and gears are three primary ways mechanical power is transferred from one rotating component to another. Each works differently and suits different operating requirements.

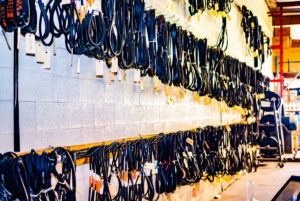

How Do Belt Drives Transfer Power?

A belt drive uses a belt running between two or more pulleys to transfer rotational power.

The basic process is:

The driving pulley receives rotational power from the motor or another shaft.
The belt carries that motion to the driven pulley.
The driven pulley rotates the connected shaft or equipment.
Different pulley diameters can change the speed and torque relationship between the shafts.

Belt drives are useful when flexibility, vibration absorption, or greater distance between shafts is needed.

How Do Chain Drives Transfer Power?

A chain drive uses a chain and industrial sprockets to transfer rotational power through positive engagement.

Sprocket teeth engage with the chain links, allowing the driving sprocket to rotate the driven sprocket without relying on friction between the two components. Chain drives are commonly used when an application requires reliable power transmission under higher loads or where belt slip could be a concern.

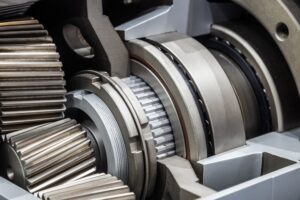

How Do Gears Transfer Power?

Gears transfer power through the direct engagement of their teeth. Gear arrangements can be used to:

Change rotational speed
Increase or decrease torque
Change the direction of rotation
Transfer power between shafts

Gear selection depends on factors such as gear type, tooth count, pitch, size, and shaft arrangement.

Can a Power Transmission System Use More Than One Method?

Yes. A single system may use multiple power transmission methods at different points.

For example, a gear reducer may use gears internally to reduce speed and increase torque, while a belt or chain drive transfers that modified power to another shaft.

There is no universally “best” option between belts, chains, and gears. The right choice depends on the load, speed, distance between shafts, environment, maintenance requirements, and other characteristics of the application.

Where Do Couplings, Bushings, and Bearings Fit?

Belts, chains, and gears transfer power, but they need other components to connect, support, and stabilize the rotating parts of the system.

What Does a Coupling Do?

Flexible and rigid couplings connect two rotating shafts so torque can be transferred from one to the other.

For example, a motor may use a coupling to transfer power to a gear reducer. Flexible couplings can accommodate certain types of shaft misalignment and movement, while rigid couplings are intended for applications where shafts need to remain precisely aligned.

What Does a Bushing Do?

Industrial bushings help to secure a rotating component to a shaft. It may connect a:

Gear to a shaft
Sprocket to a shaft
Pulley to a shaft

Once secured, the shaft can rotate the mounted component so it can transfer power to the next part of the system.

What Does a Bearing Do?

Bearings support rotating shafts and components while helping reduce friction and manage operating loads.

A bearing doesn’t transfer power from one shaft to another. Instead, it helps the shaft rotate smoothly and stay properly supported while other components perform the actual power transmission.

That makes bearings an important supporting part of the system. Problems with bearing selection, lubrication, alignment, or load capacity can affect surrounding components.

How Do These Components Work Together?

Consider a simplified power transmission system:

Motor → 2. Coupling → 3. Gear Reducer → 4. Shaft → 5. Bearing → 6. Bushing → 7. Pulley/Sprocket → 8. Driven Equipment

Each component contributes something different:

Motor: Generates rotational power.
Coupling: Transfers power to the next shaft.
Gear Reducer: Changes speed and torque to suit the driven equipment.
Shaft: Carries rotational power.
Bearing: Supports the shaft as it rotates.
Bushing: Mounts a pulley, sprocket, or gear to the shaft.
Pulley, Sprocket, or Gear: Transfers power to the next stage.
Driven Equipment: Converts mechanical power into useful work.

Not every system follows this exact arrangement, but the example demonstrates the basic principle: power transmission components have different jobs, and those jobs are interconnected.

Why Do Component Selection and Sizing Matter?

Compatible components are just as important as understanding what each one does.

Consider a gear drive. A replacement gear isn’t necessarily correct because it looks similar to the original. Tooth count, pitch, pitch diameter, bore, face width, and keyway dimensions all affect whether the gear will properly fit and mesh with the rest of the system.

The same principle applies throughout the system. A loose belt can slip and generate heat, while excessive tension can place unnecessary loads on bearings. Spurs need to be properly sized for their loads and operating conditions, while couplings and gear reducers must match the shafts, torque requirements, and equipment.

In other words, a power transmission system is only as strong as the compatibility between its components.

What Happens When One Power Transmission Component Fails?

Because the components are interconnected, a problem with one can eventually affect others.

For example:

A misaligned shaft can stress a coupling or bearing.
Improper belt tension can increase bearing loads.
A worn sprocket can accelerate chain wear.
Incorrect gear alignment can cause uneven tooth wear and vibration.
The wrong gear reducer can deliver unsuitable speed or torque.
Poor lubrication can shorten the life of gears, chains, and bearings.

A noisy bearing, worn belt, or damaged gear may therefore be a symptom of another issue elsewhere in the system.

Regular inspection and maintenance can help identify these problems before they lead to larger failures. Looking at components individually is useful, but understanding how they interact can help uncover the underlying cause.

Building a Reliable Power Transmission System

After looking at power transmission one component at a time throughout this series, the bigger picture comes down to one idea: power transmission systems work as systems, not collections of individual parts.

The electric motor or other power source provides the energy. Couplings connect rotating shafts. Gear reducers adjust speed and torque. Gears, belts, or chains transfer that power where it needs to go. Bushings secure components to shafts, while bearings support the rotating assemblies along the way.

Every component has a job, but its performance depends partly on the components around it.

That’s why proper selection, sizing, alignment, installation, and maintenance are essential. When those pieces work together as intended, the entire system can operate more efficiently and reliably.
