Throughout this series, we’ve explored the core components of power transmission systems—from gears and how they transfer motion, to belt drive systems, and chain-driven applications, as well as how to properly size and measure components for optimal performance. Each plays a critical role in transferring motion and force efficiently.
But there’s another component that often goes unnoticed, despite being essential to system performance: bushings.
Power transmission bushings may be small, but they serve a big purpose. They act as the connection point between a shaft and mounted components like bearings, sprockets, and gears, helping ensure a secure fit and reliable operation.
In this part of the series, we’ll take a closer look at what bushings are, how they work, the most common types of bushings, and how to choose the right one for your application.
What Is a Bushing in Power Transmission?
In power transmission systems, a bushing is a mechanical component used to mount and secure rotating parts to a shaft. It acts as an interface between the shaft and the component, allowing for a tight, precise fit without requiring permanent attachment methods.
Bushings play several important roles within a system. They help secure components in place, improve alignment, and ensure efficient torque transfer from the shaft to the driven component. This is especially important in systems that rely on consistent rotational motion and load distribution to function properly.
Rather than forcing a component directly onto a shaft, a bushing provides a more controlled and adaptable connection. This not only improves performance but also simplifies maintenance and replacement over time.
How Bushings Work in Power Transmission Systems
To understand how bushings function, it helps to visualize their position within the system. A bushing sits between the shaft and the mounted component—such as a drive pulley or sprocket—fitting into the component’s bore.
When installed, the bushing uses either a tapered or split design to create a tight mechanical connection. As bolts are tightened, the bushing compresses and grips both the shaft and the component. This creates a strong friction-based hold that locks everything into place.
Once secured, torque is transferred from the shaft through the bushing and into the mounted component. This process is what allows systems like belt drives and chain drives to operate efficiently without slippage or loss of power.
One of the key advantages of this design is that it allows for a secure connection without permanent installation. Unlike press-fit methods, bushings can be removed and replaced more easily, making them ideal for applications where maintenance and adjustments are required.
Why Are Bushings Used in Power Transmission Systems?
Bushings are widely used because they offer a practical and efficient solution for mounting components to shafts. They simplify both installation and maintenance while supporting overall system performance.
Some of the key benefits of using bushings include:
- Easier installation and removal compared to permanent mounting methods
- Strong, reliable grip for effective torque transfer
- Reduced wear on shafts and mounted components
- Improved alignment and system stability
- Flexibility across a wide range of applications
Because of these advantages, bushings are commonly found in systems that rely on gears, belts, and chains working together to transfer power efficiently, including conveyors, industrial machinery, manufacturing equipment, and aggregate & mining applications.
Common Types of Bushings
There are several types of bushings used in power transmission systems, each designed for specific applications and performance needs. Understanding the differences can help you select the right option for your system.
Quick Disconnect (QD) Bushings
QD bushings are designed for easy installation and removal, making them a popular choice in many industrial settings. They feature a split design that creates strong clamping force when tightened.
Because they can be quickly installed and removed without specialized tools, QD bushings are ideal for applications where downtime needs to be minimized. They are commonly used with pulleys and sprockets in conveyor systems and other production equipment.
Taper Lock Bushings
Taper lock bushings are one of the most widely used types of bushings in power transmission. They use a tapered design to create a tight, self-centering fit between the shaft and the mounted component.
This design provides strong holding power and helps maintain proper alignment during operation. Taper lock bushings are a reliable, general-purpose option that works well across a wide range of applications.
Split Taper Bushings
Split taper bushings are similar to QD bushings but feature a double-split design for enhanced grip. This allows them to handle higher torque loads and provides a more secure connection in demanding environments.
They are often used in heavy-duty applications where strength and reliability are critical, such as industrial machinery and large-scale equipment.

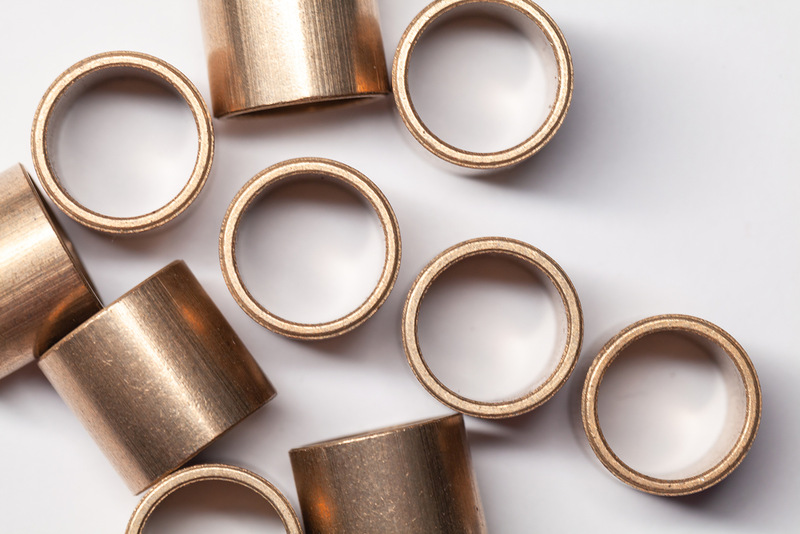

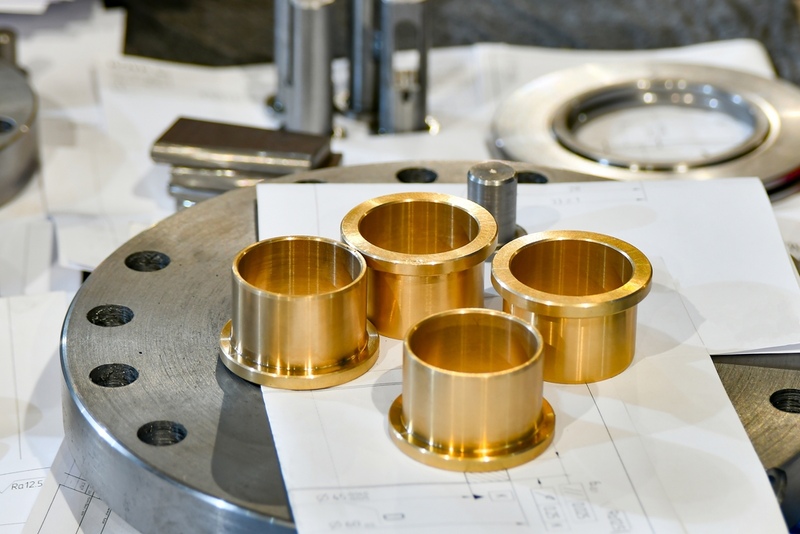

Plain (Sleeve) Bushings
Plain bushings, also known as sleeve bushings, serve a slightly different purpose. Rather than focusing primarily on mounting, they act as a bearing surface to reduce friction between moving parts.
These bushings are typically used in lower-speed or less demanding applications where minimizing wear is the primary goal.
How to Choose the Right Bushing for Your Application
Selecting the right bushing is essential for ensuring reliable performance and long-term efficiency. Several factors should be considered when making your decision.
Shaft Size and Specifications
The bushing must match the shaft’s diameter and tolerances precisely. A proper fit is critical for maintaining alignment and ensuring effective torque transfer.
Load & Torque Requirements
Applications involving higher loads or torque require bushings that can handle increased stress. Choosing the right design and material will help prevent slippage and premature wear, especially in high-demand systems.
Application Type
Consider how the system will be used. Light-duty applications may not require the same level of strength as heavy industrial systems, while high-cycle operations may demand more durable solutions.
Ease of Maintenance
If your application requires frequent adjustments or component changes, a bushing that allows for quick installation and removal—such as a QD bushing—may be the best choice.
Operating Environment
Environmental conditions can also impact performance. Exposure to dust, moisture, or extreme temperatures may influence material selection and overall durability.
Choosing the Right Bushing for Reliable Power Transmission
Bushings may be a small component, but they play a critical role in the performance and reliability of power transmission systems. By providing a secure connection between shafts and rotating components, they help ensure efficient operation and reduce the risk of slippage or misalignment.
When used alongside properly selected gears, belts, and chains, the right bushing helps create a more efficient, stable, and long-lasting system. Taking the time to understand your options and choose the correct component can make a significant difference in overall performance.
